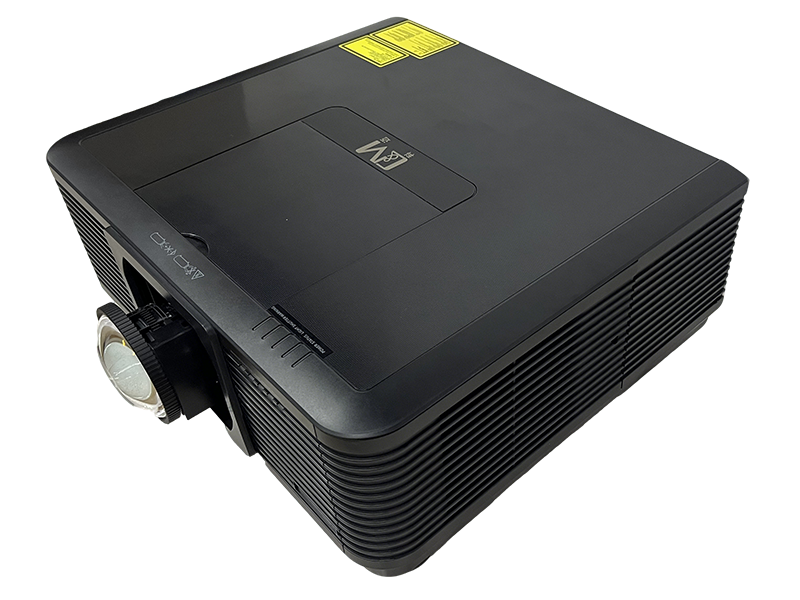

Laser 3-chip LCD projector
UEC-WU105
UEC-WU105
C&M UEC series laser projector adopts RGB 3-chip LCD projection technology, which effectively uses light source to reduce light loss. It has the characteristics of high brightness efficiency, large color space, energy saving and environmental protection.
Compared with other projection technologies, the use of 3-chip LCD projection technology enables C&M UEC series projectors to project high color brightness, clear, bright and gorgeous images, without color overflow and rainbow phenomenon, which can make viewing more comfortable.
Features
New laser source technology
C&M UEC series laser projector uses a new laser light source, with laser optics and cooling design, making this new product light, convenient and quiet, and longer light source life..
High contrast: 5000000:1
The high contrast ratio of 5000000 to 1 can show the delicacy of the picture and the details of the contrast between light and shade, which brings the user a wonderful feeling of being in the scene.
High resolution: WUXGA
WUXGA (1920x1200 pixels) can present full HD video images. Even if it is projected on a large screen, it can still maintain clear and vivid details, bringing users a vibrant visual experience.
More flexible: Vertical + Horizontal + Six corner correction
supports ±30°vertical and ±30°horizontal trapezoidal correction, as well as four corner correction, support pillow and barrel correction additionally for convenient and flexible installation.

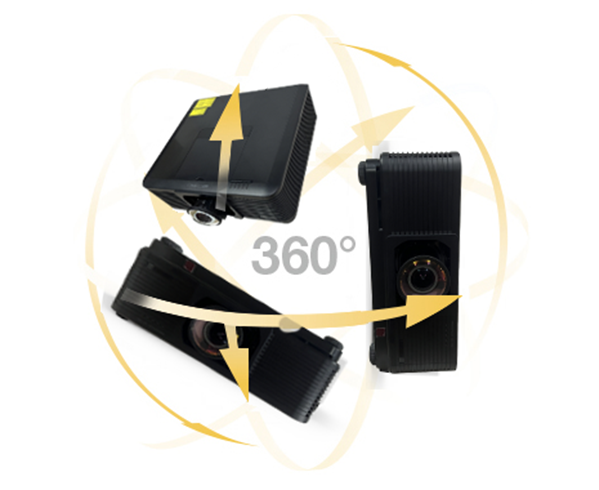

All directions: 360 degree projection
UEC series projectors support 360 degree omni-directional projection, and users can easily realize their creativity.

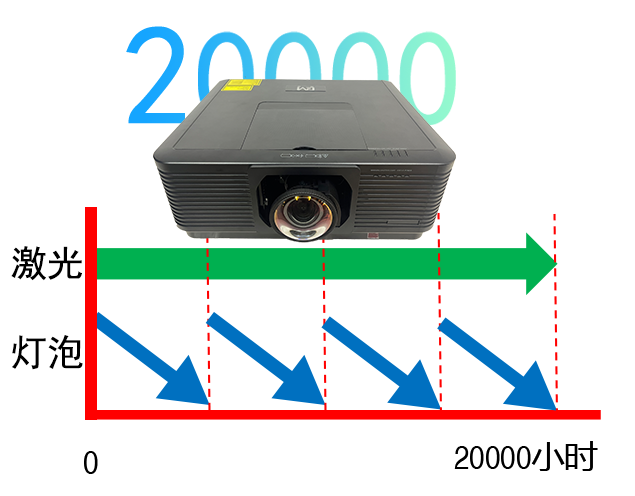

Long life: 20,000 hours
UEC series uses the 4th generation fluorescent laser source, the service life can reach 20,000 hours, fully meet the standard, give users peace of mind.
More balanced: High brightness + Wide gamut
Color management of C&M comes from more than ten years of R&D experience. It is a color management technology specially applied to projection display. At the same time, thanks to the characteristics of high spectrum and wide color gamut of laser light source, UEC series can not only ensure abundant brightness output, but also have rich color performance, so as to achieve the effect of brightness and color balance.
4K: Support 4K ultra high definition input
4 times higher than 1080p ultra high definition 4K resolution, with millisecond visibility and rich details.

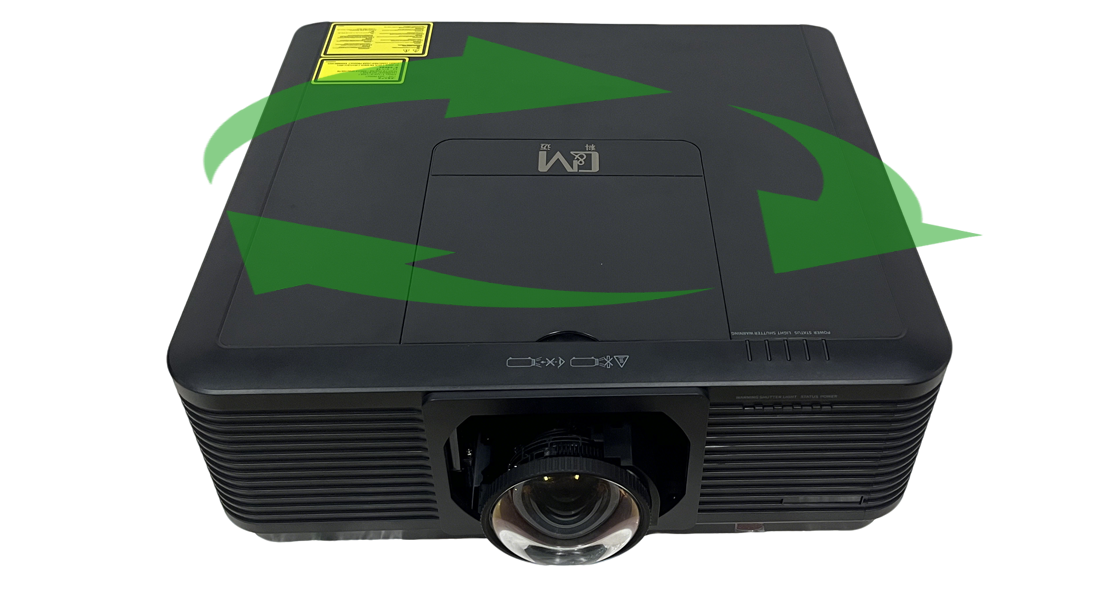

Proprietary sealed structure
Sealed and dustproof design, eliminating maintenance and replacement of filter screens. More time-saving and labor-saving, enjoying worry free.

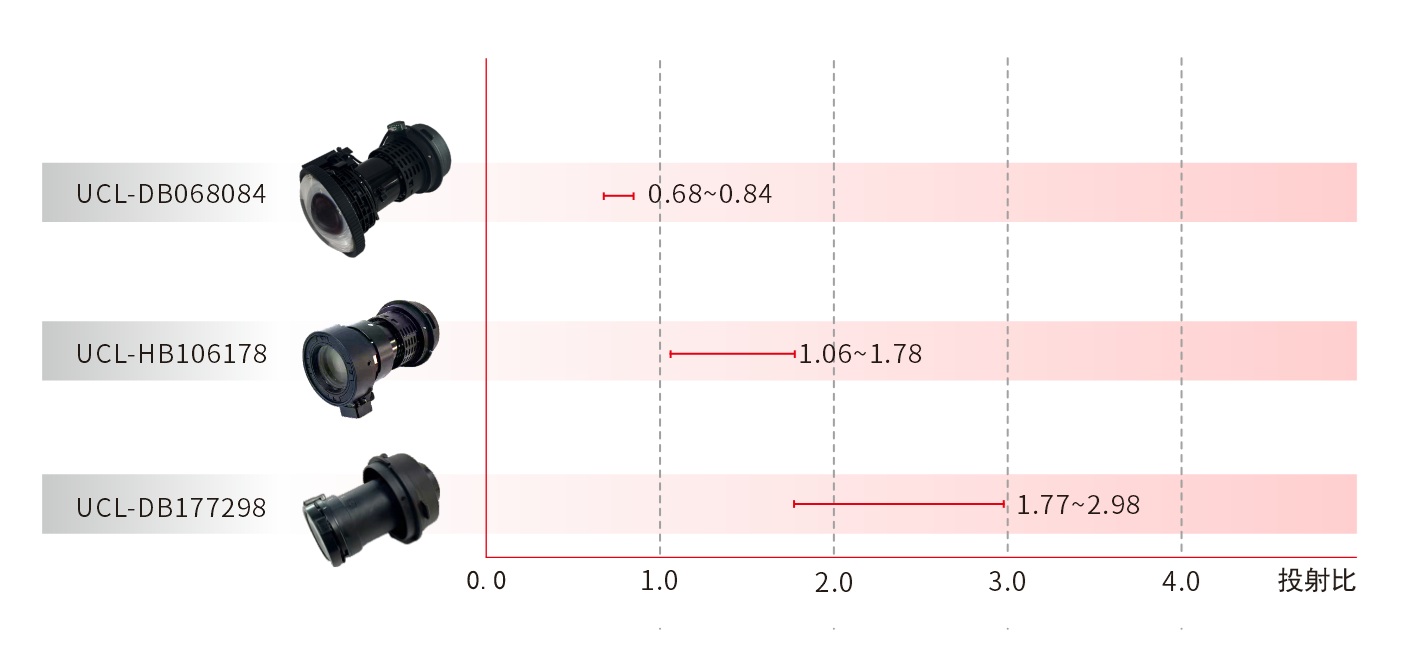

Optional lens
SPECS
| Projection type | Laser 3-chip LCD projector |
| Display technology | 3-chip LCD (0.64 inch) |
| Brightness | 10,500 ISO lumens |
| Resolution ratio | 1,920x1,200(WUXGA) |
| Contrast ratio | 5,000,000:1 (Dynamic mode) |
| Aspect ratio | Supports 16:10,16:9, 4:3 |
| Light source | Blue+Red laser diode |
| Light source lifetime | 20,000H |
| Optical lens shift | H:±23%(MAX), V:0~±50%(MAX) |
| Lens type | Optional electric / manual zoom; Optional electric / manual focusing |
| Image size | 30-500 inches (diagonal) |
| Geometric correction | V: ±30°；H:±30°；Pillow / barrel correction; Six angle geometric correction; Grid image correction |

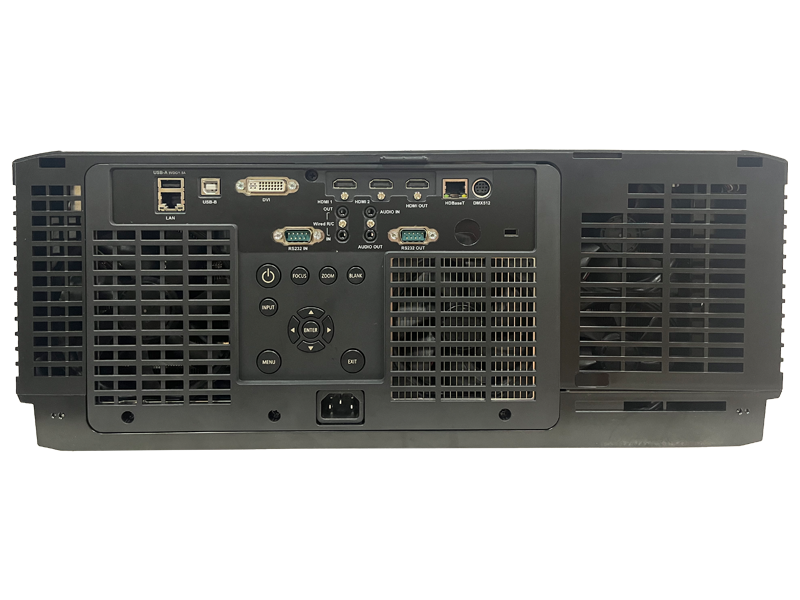

| Inputs | HDMI x2 ; DVI-D x1; HD-BaseT(Compatible) x1; USB(B) Display ×1; LAN(Display) ×1(Share); Mini jack 3.5mm audio x1 |
| Outputs | HDMI ×1; Mini jack 3.5mm audio x1 |
| Control | Serial port (D-sub 9 pin, RS232) x2(in + out); RJ45(10BASE-T/100BASE-TX) x1; Mini jack 3.5mm stereo(Wired R/C IN) x1; Mini jack 3.5mm stereo(Wired R/C OUT) x1; DMX512 x1 |
| Other interfaces | USB-A x1; LAN(Network)x1(Shared) |
| Internet of Things(IoT) | Crestron RoomView (Compatible); AMX Discovery (Compatible); PJ Link (Compatible) |
| Scanning frequency | V:24~120Hz；H:15~100KHz |
| Computer input | VGA； SVGA； XGA； SXGA；WXGA；UXGA；WUXGA；4K@60Hz |
| Image mode | Dynamic, Standard, Cinema, Color board, DICOM SIM, Blackboard (Green) |
| Edge blending | Yes |
| Automatic function | INPUT SEARCH；AUTO PC；Automatic hoisting detection |
| Electronic zoom | 1~4 times |
| 360 degree projection | Yes |
| Heat dissipation mode | Air cooling |
| Shutdown heat dissipation mode | 0 seconds shutdown; 30 seconds shutdown; normal shutdown |
| High sea level model | Yes (0~3650m) |
| Noise level | 39dB(Standard mode); 32dB(Quiet mode) |
| Power requirements | 100~240V@ 50/60Hz |
| Power consumption | 755W(Standard mode); 400W(Quiet mode); |
| Standby power | <0.5W |
| Operational ambient | Temperature 5℃ ~ 50℃； Humidity 20%~80%(No condensation) |
| Storage ambient | Temperature -10℃ ~ 50℃； Humidity 20%~80%(No condensation) |
| Net weight | About 18.5 kg (without lens) |
| Dimensions (WxLxH) | 490mm × 420mm × 205mm(without lens) |
| Shipping weight from factory | 28kg |
| Shipping dimensions from factory | 800mm × 740mm × 440mm |
| Certification | CCC; |
**The above is only an offer invitation, and the contract is the only way of commitment.
