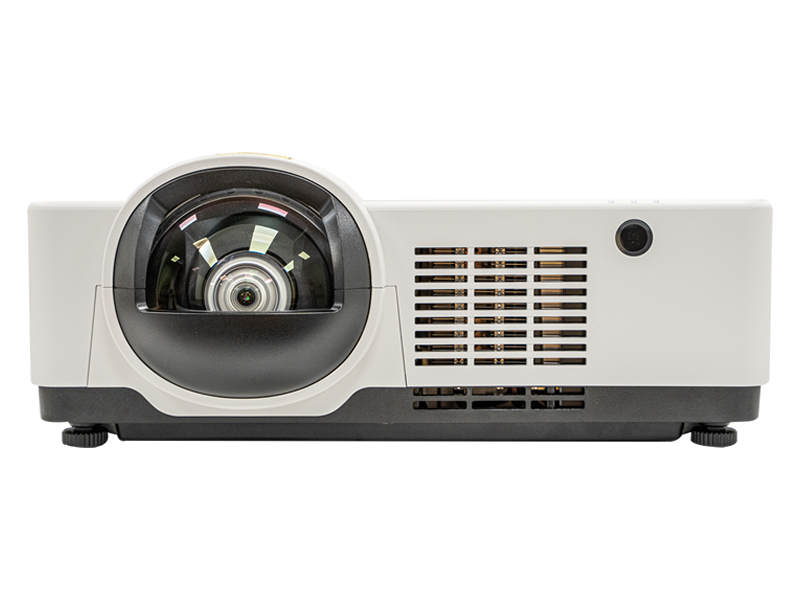

Laser 3-chip LCD projector



Display technology:3-chip LCD (0.64 inch)
Brightness:6,350 ISO lumens
Contrast ratio:5,000,000:1

  C&M KPT series laser projector adopts RGB 3-chip LCD projection technology, which effectively uses light source to reduce light loss. It has the characteristics of high brightness efficiency, large color space, energy saving and environmental protection.
  Compared with other projection technologies, the use of 3-chip LCD projection technology enables C&M KPT series projectors to project high color brightness, clear, bright and gorgeous images, without color overflow and rainbow phenomenon, which can make viewing more comfortable.


New laser source technology

C&M KPT series laser projector uses a new laser light source, with laser optics and cooling design, making this new product light, convenient and quiet, and longer light source life.

High contrast: 5,000,000:1

The high contrast ratio of 5,000,000 to 1 can show the delicacy of the picture and the details of the contrast between light and shade, which brings the user a wonderful feeling of being in the scene.

High resolution: WUXGA

WUXGA (1920x1200 pixels) can present full HD video images. Even if it is projected on a large screen, it can still maintain clear and vivid details, bringing users a vibrant visual experience.

More flexible: Vertical + Horizontal + Six corner correction

supports ±15°vertical and ±15°horizontal trapezoidal correction, as well as four corner correction, support pillow and barrel correction additionally for convenient and flexible installation.

All directions: 360 degree projection

KPT series projectors support 360 degree omni-directional projection, and users can easily realize their creativity.

Long life: 20,000 hours

KPT series uses the 4th generation fluorescent laser source, the service life can reach 20,000 hours, fully meet the standard, give users peace of mind.

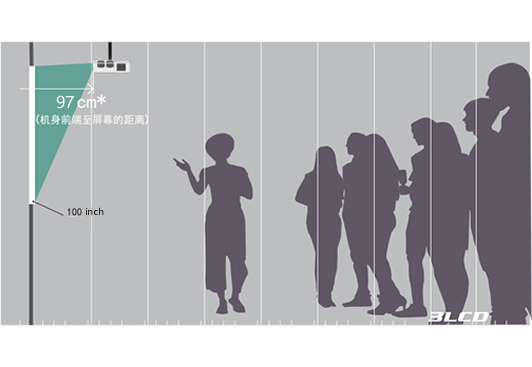

Simple: short focus projection

The short focus projection lens can project a 100 inch image at a distance of 0.97 meters, greatly reducing the glare of the projector, making the image difficult to be blocked, and giving the audience a clearer perspective.

4K: Support 4K ultra high definition input

4 times higher than 1080p ultra high definition 4K resolution, with millisecond visibility and rich details.

Louder: Built-in 16W speaker

A built-in 16W speaker with outstanding performance makes the sound louder and the overall performance more colored and sound.


Projection type Laser 3-chip LCD projector
Display technology 3-chip LCD (0.64 inch)
Brightness 6,350 ISO lumens
Resolution ratio 1,920x1,200(WUXGA)
Contrast ratio 5,000,000:1
Aspect ratio 16:10 (Supports 16:9, 4:3)
Light source Laser diode
Light source lifetime 20,000H(Normal)/30,000H(ECO)
Optical lens shift no Shift
Lens type Manual focusing/no zoom
Projection ratio 0.44
Image size 55-130 inches (diagonal)
Geometric correction V: ± 15 °; H: ± 15 °; Pillow / barrel correction; Six angle geometric correction; Grid image correction

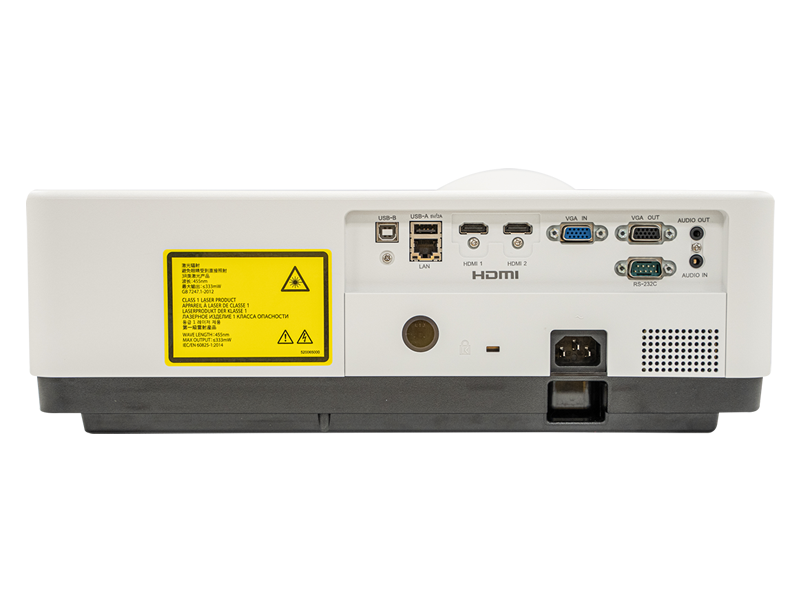

Inputs HDMI(1.4B Compatible) x2; VGA ×1; Video ×1; USB(B) Display ×1; LAN(Display) ×1; Mini jack 3.5mm audio ×1;
Speaker 16W x1
Outputs VGA x1; Mini jack 3.5mm audio x1
Control Serial port (D-sub 9 pin, RS232) x1; LAN(Control) x1; USB(B) for upgrade ×1
Other interfaces USB(A)×1、LAN(Network)x1(Share)
Internet of Things(IoT) Crestron RoomView (Compatible); AMX Discovery (Compatible); PJ Link (Compatible)
Scanning frequency V:24~85Hz;H:15~100KHz
Video input 480i; 480p; 576i; 576p; 720p; 1080i;1080p
Image mode Dynamic, Standard, Cinema, Color board, DICOM, Blackboard (Green)
Edge blending Yes
Automatic function Input search; Auto PC;Automatic vertical trapezoid correction;Automatic hoisting detection;
Electronic zoom 1~33 times
360 degree projection Yes

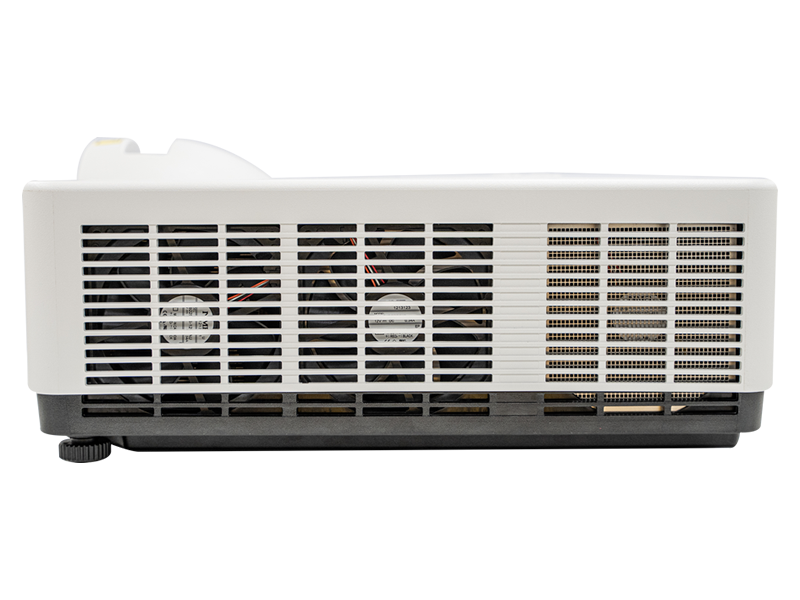

Heat dissipation mode Air cooling
Shutdown heat dissipation mode 0 seconds shutdown; Normal; 60 seconds shutdown;
High sea level model Yes (0~3000m)
Noise level Normal:37dB;ECO1:27dB;
Power requirements 100~240V@ 50/60Hz
Power consumption 360W(Standard mode);230W(ECO2)
Standby power <0.5W
Operational ambient Temperature 5℃ ~ 45℃; Humidity 20%~80%(No condensation)
Storage ambient Temperature -10℃ ~50℃; Humidity 10%~80%(No condensation)
Net weight About 7.9kg
Dimensions (WxLxH) 405mm x 404mm x 164mm (W x L x H)
Shipping weight from factory About 10.4 kg
Shipping dimensions from factory 510mm x 498mm x 260mm (W x L x H)
Certification CCC, CECP, CEL
*For 3-chip LCD technology, please refer to
**The above is only an offer invitation, and the contract is the only way of commitment.


KPT-S96UL manual 2023/08/01
