Laser 3-chip LCD projector
EFL-WU62S
EFL-WU62S
C&M EFL series laser projector adopts RGB 3-chip LCD projection technology, which effectively uses light source to reduce light loss. It has the characteristics of high brightness efficiency, large color space, energy saving and environmental protection.
Compared with other projection technologies, the use of 3-chip LCD projection technology enables C&M EFL series projectors to project high color brightness, clear, bright and gorgeous images, without color overflow and rainbow phenomenon, which can make viewing more comfortable.
FEAURES
New laser source technology
C&M EFL series laser projector uses a new laser light source, with laser optics and cooling design, making this new product light, convenient and quiet, and longer light source life.
High contrast: 5,000,000:1
The high contrast ratio of 5,000,000 to 1 can show the delicacy of the picture and the details of the contrast between light and shade, which brings the user a wonderful feeling of being in the scene.
High resolution: WUXGA
WUXGA (1920x1200 pixels) can present full HD video images. Even if it is projected on a large screen, it can still maintain clear and vivid details, bringing users a vibrant visual experience.
More flexible: Vertical + Horizontal + Six corner correction
supports ±15°vertical and ±15°horizontal trapezoidal correction, as well as four corner correction, support pillow and barrel correction additionally for convenient and flexible installation.
All directions: 360 degree projection
EFL series projectors support 360 degree omni-directional projection, and users can easily realize their creativity.
Long life: 20,000 hours
EFL series uses the 4th generation fluorescent laser source, the service life can reach 20,000 hours, fully meet the standard, give users peace of mind.

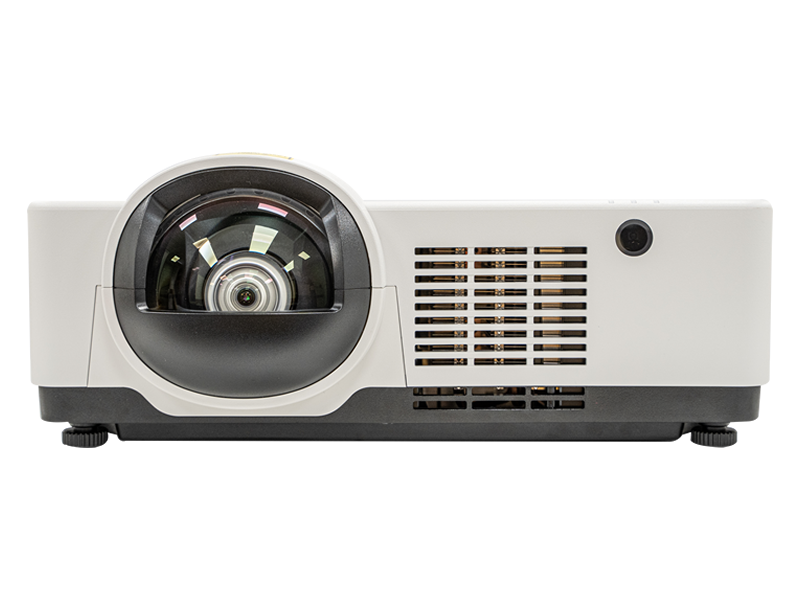

Simple: short focus projection
The short focus projection lens can project a 100 inch image at a distance of 0.97 meters, greatly reducing the glare of the projector, making the image difficult to be blocked, and giving the audience a clearer perspective.
4K: Support 4K ultra high definition input
4 times higher than 1080p ultra high definition 4K resolution, with millisecond visibility and rich details.
Louder: Built-in 16W speaker
A built-in 16W speaker with outstanding performance makes the sound louder and the overall performance more colored and sound.
SPECS
| Projection type | Laser 3-chip LCD projector |
| Display technology | 3-chip LCD (0.64 inch) |
| Brightness | 6,200 ISO lumens |
| Resolution ratio | 1,920x1,200(WUXGA) |
| Contrast ratio | 5,000,000:1 |
| Aspect ratio | 16:10 (Supports 16:9, 4:3) |
| Light source | Laser diode |
| Light source lifetime | 20,000H(Normal)/30,000H(ECO) |
| Optical lens shift | no Shift |
| Lens type | Manual focusing/no zoom |
| Projection ratio | 0.44 |
| Image size | 55-130 inches (diagonal) |
| Geometric correction | V: ± 15 °; H: ± 15 °; Pillow / barrel correction; Six angle geometric correction; Grid image correction |

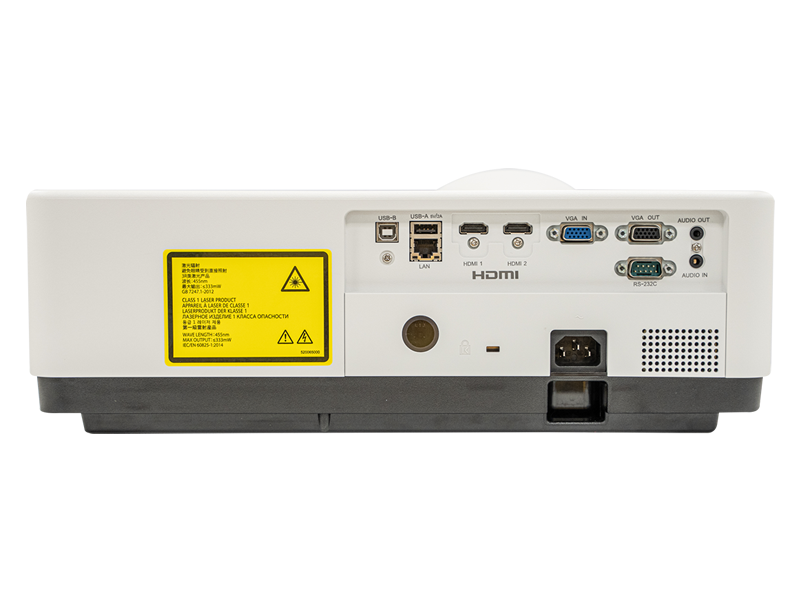

| Inputs | HDMI(1.4B Compatible) x2; VGA ×1; Video ×1; USB(B) Display ×1; LAN(Display) ×1; Mini jack 3.5mm audio ×1; |
| Speaker | 16W x1 |
| Outputs | VGA x1; Mini jack 3.5mm audio x1 |
| Control | Serial port (D-sub 9 pin, RS232) x1; LAN(Control) x1; USB(B) for upgrade ×1 |
| Other interfaces | USB(A)×1、LAN(Network)x1(Share) |
| Internet of Things(IoT) | Crestron RoomView (Compatible)； AMX Discovery (Compatible)； PJ Link (Compatible) |
| Scanning frequency | V:24~85Hz；H:15~100KHz |
| Computer input | VGA； SVGA； XGA； SXGA；WXGA；UXGA；WUXGA；4K@30Hz |
| Video input | 480i； 480p； 576i； 576p； 720p； 1080i；1080p |
| Image mode | Dynamic, Standard, Cinema, Color board, DICOM, Blackboard (Green) |
| Edge blending | Yes |
| Automatic function | Input search; Auto PC；Automatic vertical trapezoid correction；Automatic hoisting detection; |
| Electronic zoom | 1~33 times |
| 360 degree projection | Yes |
| Heat dissipation mode | Air cooling |
| Shutdown heat dissipation mode | 0 seconds shutdown; Normal; 60 seconds shutdown; |
| High sea level model | Yes (0~3000m) |
| Noise level | Normal:37dB；ECO1:27dB； |
| Power requirements | 100~240V@ 50/60Hz |
| Power consumption | 360W(Standard mode)；230W(ECO2) |
| Standby power | <0.5W |
| Operational ambient | Temperature 5℃ ~ 45℃； Humidity 20%~80%(No condensation) |
| Storage ambient | Temperature -10℃ ~50℃； Humidity 10%~80%(No condensation) |
| Net weight | About 7.9kg |
| Dimensions (WxLxH) | 405mm x 404mm x 164mm (W x L x H) |
| Shipping weight from factory | About 10.4 kg |
| Shipping dimensions from factory | 510mm x 498mm x 260mm (W x L x H) |
| Certification | CCC, CECP, CEL |
**The above is only an offer invitation, and the contract is the only way of commitment.
