C&M EFL series laser projector adopts RGB 3-chip LCD projection technology, which effectively uses light source to reduce light loss. It has the characteristics of high brightness efficiency, large color space, energy saving and environmental protection.
Compared with other projection technologies, the use of 3-chip LCD projection technology enables C&M EFL series projectors to project high color brightness, clear, bright and gorgeous images, without color overflow and rainbow phenomenon, which can make viewing more comfortable.
C&M EFL series laser projector uses a new laser light source, with laser optics and cooling design, making this new product light, convenient and quiet, and longer light source life.
The high contrast ratio of 5,000,000 to 1 can show the delicacy of the picture and the details of the contrast between light and shade, which brings the user a wonderful feeling of being in the scene.
WUXGA (1920x1200 pixels) can present full HD video images. Even if it is projected on a large screen, it can still maintain clear and vivid details, bringing users a vibrant visual experience.
supports ±30°vertical and ±30°horizontal trapezoidal correction, as well as four corner correction, support pillow and barrel correction additionally for convenient and flexible installation.
EFL series projectors support 360 degree omni-directional projection, and users can easily realize their creativity.
EFL series uses the 4th generation fluorescent laser source, the service life can reach 20,000 hours, fully meet the standard, give users peace of mind.
Color management of C&M comes from more than ten years of R&D experience. It is a color management technology specially applied to projection display. At the same time, thanks to the characteristics of high spectrum and wide color gamut of laser light source, EFL series can not only ensure abundant brightness output, but also have rich color performance, so as to achieve the effect of brightness and color balance.
4 times higher than 1080p ultra high definition 4K resolution, with millisecond visibility and rich details.
A built-in 16W speaker with outstanding performance makes the sound louder and the overall performance more colored and sound.
|Projection type||Laser 3-chip LCD projector|
|Display technology||3-chip LCD (0.64 inch)|
|Brightness||5,600 ISO lumens|
|Aspect ratio||16:10 (Supports 16:9, 4:3)|
|Light source||Laser diode|
|Light source lifetime||20,000H(Normal)/30,000H(ECO)|
|Optical lens shift||V:＋35%～0%；H:0%|
|Lens type||Manual focusing/Manual zoom|
|Image size||30-300 inches (diagonal)|
|Geometric correction||V: ± 30 °; H: ± 30 °; Pillow / barrel correction; Six angle geometric correction; Grid image correction|

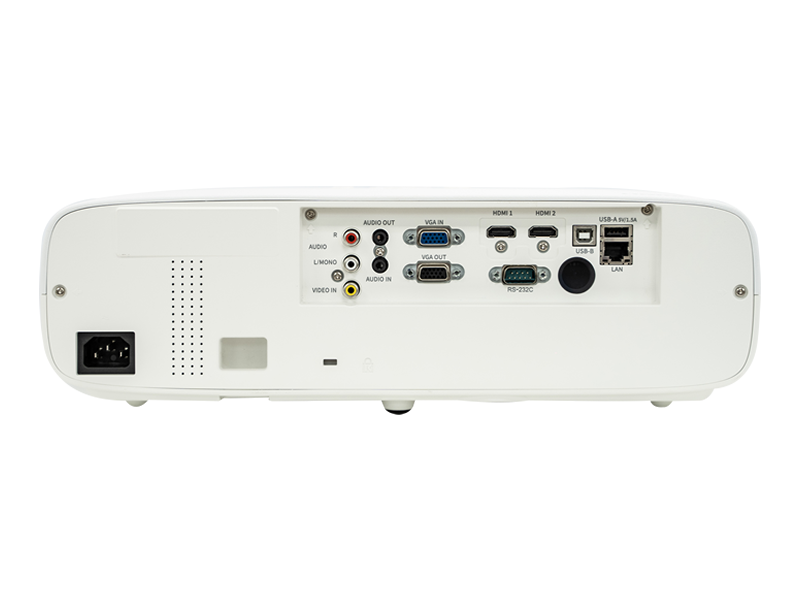

|Inputs||HDMI ×2; VGA ×1; Video ×1; USB(B) Display ×1; LAN(Display) ×1; Mini jack 3.5mm audio ×1; RCA audio ×2(L/R)|
|Outputs||VGA x1; Mini jack 3.5mm audio x1|
|Control||Serial port (D-sub 9 pin, RS232) x1; LAN(Control) x1; USB(B) Control ×1|
|Internet of Things(IoT)||Crestron RoomView (Compatible)； AMX Discovery (Compatible)； PJ Link (Compatible)|
|Computer input||VGA； SVGA； XGA； SXGA；WXGA；UXGA；WUXGA；4K@30Hz|
|Video input||480i； 480p； 576i； 576p； 720p； 1080i；1080p|
|Image mode||Dynamic, Standard, Cinema, Color board, DICOM, Blackboard (Green)|
|Automatic function||Input search; Auto PC；Automatic vertical trapezoid correction；Automatic hoisting detection;|
|Electronic zoom||1~33 times|
|360 degree projection||Yes|
|Heat dissipation mode||Air cooling|
|Shutdown heat dissipation mode||5 seconds shutdown|
|High sea level model||Yes (0~3000m)|
|Power requirements||100~240V@ 50/60Hz|
|Power consumption||280W(Standard mode)；170W(ECO2)|
|Operational ambient||Temperature 5℃ ~ 40℃(ECO mode ～35℃)； Humidity 20%~80%(No condensation)|
|Storage ambient||Temperature -10℃ ~50℃； Humidity 10%~80%(No condensation)|
|Dimensions (WxLxH)||390mm x294mm x 127mm(W x L x H)|
|Shipping weight from factory||About 8.0 kg|
|Shipping dimensions from factory||492mm x 443mm x 239mm (W x L x H)|
|Certification||CCC, CECP, CEL|
