Laser 3-chip LCD projector

EFL-WU53S

EFL-WU53S

Display technology:3-chip LCD (0.64 inch LCD with micro mirror array)
Brightness:5300 ISO lumens
Contrast ratio:500000:1
Resolution:1920 x 1200(WUXGA)

  C&M EFL series laser projector adopts RGB 3-chip LCD projection technology, which effectively uses light source to reduce light loss. It has the characteristics of high brightness efficiency, large color space, energy saving and environmental protection.
  Compared with other projection technologies, the use of 3-chip LCD projection technology enables C&M EFL series projectors to project high color brightness, clear, bright and gorgeous images, without color overflow and rainbow phenomenon, which can make viewing more comfortable.

FEAURES

HBR: Laser fluorescent light source


The EFL-WU53S laser projector uses a newly developed laser source, an inorganic fluorescent wheel with high heat resistance and strong light resistance, and a sealed optical path, which can output a brightness of up to 5300 lumens.

High contrast: 500,000:1


The high contrast ratio of 500000 to 1 can show the delicacy of the picture and the details of the contrast between light and shade, which brings the user a wonderful feeling of being in the scene.

High resolution: WUXGA


WUXGA (1920x1200 pixels) can present full HD video images. Even if it is projected on a large screen, it can still maintain clear and vivid details, bringing users a vibrant visual experience.

High fidelity: Hexagonal correction + Multipoint correction


The powerful combination of horizontal / vertical trapezoidal correction + hexagonal correction + pillow / barrel distortion correction + multipoint trapezoidal correction makes the adjustment operation simple, ensuring that users can achieve high fidelity imaging effects on various irregular projection surfaces.

More balanced: High brightness + Wide gamut


Color management of C&M comes from more than ten years of R&D experience. It is a color management technology specially applied to projection display. At the same time, thanks to the characteristics of high spectrum and wide color gamut of laser light source, EFL series can not only ensure abundant brightness output, but also have rich color performance, so as to achieve the effect of brightness and color balance.

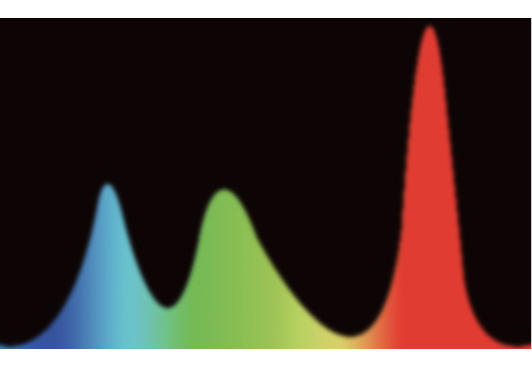

More gorgeous: Wide spectrum + High color restoration


In the spectrum of EFL series, the height of red and the width of blue and green are much better than traditional light sources, which can not only provide high brightness, but also show a high degree of pure and beautiful color restoration close to nature.

Shorter focal length: 0.235:1 projection ratio


With an ultra short focal projection ratio of 0.235:1, users can enjoy a 100 inch giant screen at less than 20cm from the rear end of the machine to the wall.

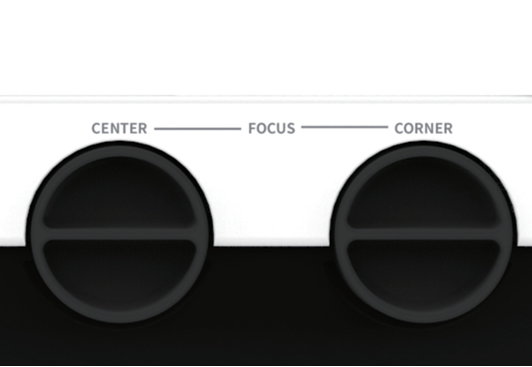

Clearer: Fine focusing + Secondary focusing


The whole image is accurately focused to ensure that the picture in the central area is clear, and the four corner secondary focusing makes the picture clearer.

Louder: Built-in 16W speaker


A built-in 16W speaker with outstanding performance makes the sound louder and the overall performance more colored and sound.

SPECS

Projection type Laser 3-chip LCD projector
Display technology 3-chip LCD (0.64 inch LCD with micro mirror array)
Brightness 5300 ISO lumens
Resolution ratio 1920 x 1200(WUXGA)
Contrast ratio 500000:1
Aspect ratio 16:10
Light source Laser diode
Light source lifetime 20000H
Optical lens shift fixed
Lens type Manual focus / 0.235: 1 fixed focus
Image size 80~120 inch (diagonal)
Geometric correction V: ± 30 °; H: ± 30 °; Pillow / barrel correction; Six angle geometric correction (wall corner); Grid image correction

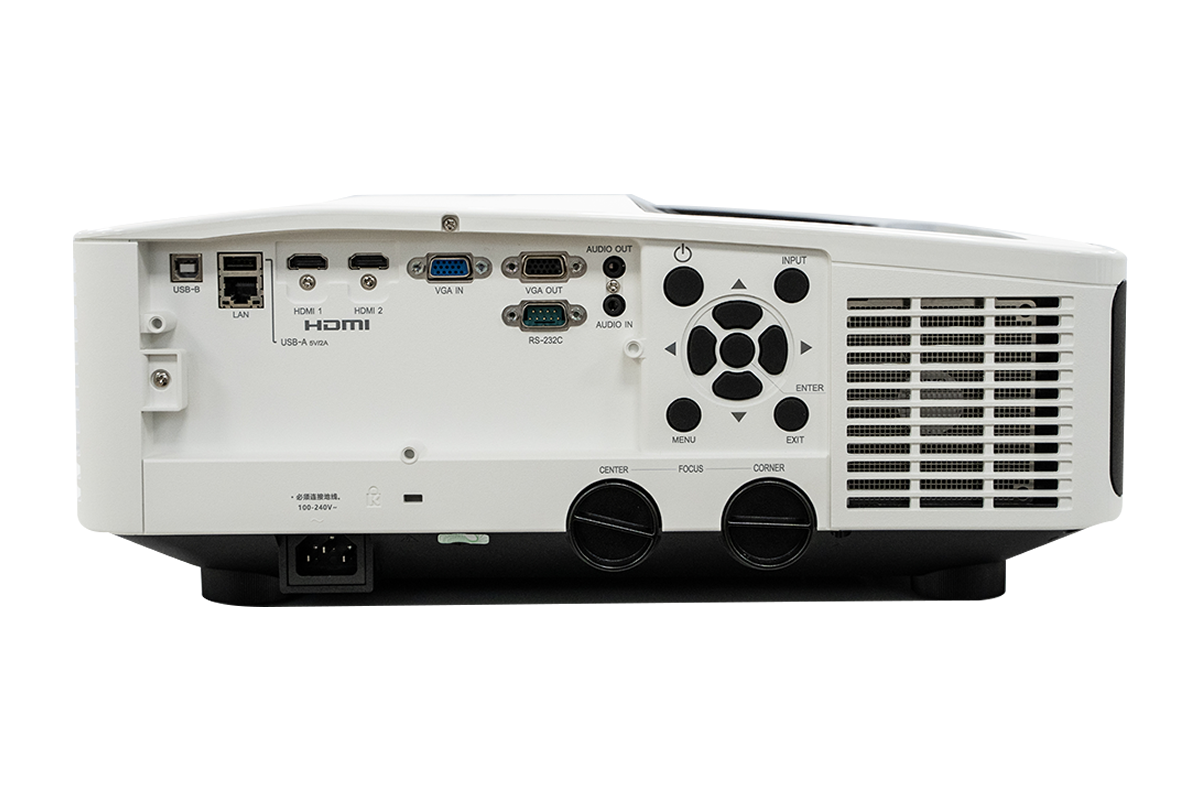

Inputs VGA x1;HDMI(1.4 Compatible) x2;Mini jack 3.5mm audio x1
Speaker 16W x1
Outputs VGA x1;Mini jack 3.5mm audio x1
Control Serial port (D-sub 9 pin, RS232) x1; RJ45(10BASE-T/100BASE-TX) x1
Other interfaces USB-A x1;USB-B x1
Scanning frequency V:24~85Hz;H:15~100KHz
Computer input VGA; SVGA; XGA; SXGA;WXGA;UXGA;WUXGA;4K@30Hz
Video input 480i; 480p; 576i; 576p; 720p; 1080i;1080p
Image mode Dynamic, Standard, Cinema, Color board, DICOM
Edge blending Yes
Automatic function INPUT SEARCH;AUTO PC;Automatic hoisting detection
Electronic zoom 1~33 times
Heat dissipation mode Air cooling
Shutdown heat dissipation mode 0 seconds shutdown; normal shutdown; 60 seconds shutdown
High sea level model Yes (0~3000m)
Noise level 37dB(Normal);30dB(ECO1);27dB(ECO2)
Power requirements 100~240V@ 50/60Hz
Power consumption 360W(Standard mode);230W(ECO2)
Standby power <0.5W
Operational ambient Temperature 5℃ ~ 45℃; Humidity 20%~80%(No condensation)
Storage ambient Temperature -10℃ ~ 50℃; Humidity 20%~80%(No condensation)
Net weight About 11 kg
Dimensions (WxLxH) 520mm x 435mm x 168mm
Shipping weight from factory About 13.5 kg
Shipping dimensions from factory 610mm x 526mm x 266mm
Certification CCC, CECP, CEL
*For 3-chip LCD technology, please refer to www.3lcd.com/
**The above is only an offer invitation, and the contract is the only way of commitment.
